Checkline DTL-100i Low Range Digital Torque Wrench, Capacity 106 in-lb / 12 N-m, 1/4" Drive



Price: $ 375.00

Checkline DTL-50i and DTL-100i Low Range Digital Torque Wrench
1/4" Digital Torque Wrench
3 Ranges, Up to 177 lb-in / 20 Nm capacity
Compact design for low-torque, limited access applications

3 Models

  • DTL-50i: 53 in-lb / 4.4 lb-ft / 6 N-m / 61 kg-cm
  • DTL-100i: 106 in-lb / 8.85 lb-ft / 12 N-m / 122 kg-cm
  • DTL-175i: 177 in-lb / 14.75 lb-ft / 20 N-m / 204 kg-cm
The new Check-Line DTL Digital Torque Wrench is designed for precise measurement and application of torque in industrial, automotive, aerospace and many other applications. Its small size and ratcheting head are ideal for use in areas with limited access. It measures and applies torque in both CW and CCW directions and displays in Real-Time or Peak Mode. Measurement units are user selectable (Lb-in, N-m, ft-lb or Kg-cm).

The Checkline DTL features a programmable target set point that indicates the desired torque value with a red and green LEDs and audible beep.


line
Kit Contents
line

  • DTL Low Range Digital Torque Wrench
  • Wrench
  • 1 AAA battery
  • Calibration Cert
  • Instruction Manual
  • Carrying Case


line
Features
line

  • Displays in-lb, N-m, Kg-cm and ft-lb units (User selectable)
  • CW and CCW operation
  • Peak or Real-Time (track) mode (User Selectable)
  • Programmable Target Set-point with audible and LED indicators
  • At 90% of Target, Green LED illuminates with slow audible beep
  • At 100% of Target, Green & Red LEDs illuminate with continuous beep
  • Ratcheting Head
  • Includes Calibration Certificate (Click for sample)
  • CE Certified


lineSpecificationsline

AccuracyCW 2% / CCW 3% of indicated from 20 - 100% of capacity
Operation ModePeak hold/ Track
Unit Selectionft-lb, in-lb, N-m, Kg-cm
DimensionsLength: 8.25" x 1" (210 x 25.4mm)
Head DimensionsWidth: 0.75 / 19.2mm at (widest location)
Height: 0.4" / 10.2mm (not including length of 1/4" drive which extends 0.31" / 8mm)
Head TypeLever type Ratchet
Battery1 AAA
Battery Life12 Continuous Hours
1 Year Standby
Model Code in ManualDME2-006CN, DME2-012CN
Operating Temperature-10C ~ 60C
Zero FunctionTo zero the DTL-100i press the "C" key. The display will clear then it will return to the "target value" (preset)
Storage Temperature-20C ~ 70C
HumidityUp to 90% non-condensing
Warranty1 Year


line
Force Ranges
line

ModelMeasuring RangeResolution
DTL-50i2.6 - 53.1 Lb-in
0.3 - 6.00 Nm
0.22 - 4.4 Lb-ft
3. - 61 Kg-cm
0.01 Lb-in
0.001 Lb-ft
0.001 Nm
0.01 Kg-cm
DTL-100i5.3 - 106.2 Lb-in
0.6 - 12.00 Nm
0.44 - 8.85 Lb-ft
6.1 - 122.4 Kg-cm
0.1 Lb-in
0.01 Lb-ft
0.01 Nm
0.1 Kg-cm
DTL-175i8.8 - 177.0 Lb-in
1.0 - 20.00 Nm
0.74 - 14.75 Lb-ft
10.2 - 204.1 Kg-cm
0.1 Lb-in
0.01 Lb-ft
0.01 Nm
0.1 Kg-cm


lineRelated Productsline

DTW
Electronic Torque Wrench

  • CW and CCW operation
  • Buzzer and LED indicator for the pre-settable target torque
related

line

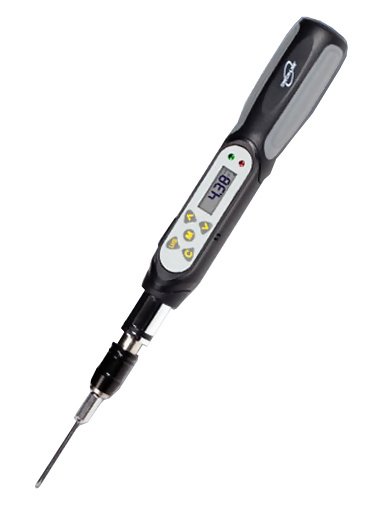

TSD
Torque Screwdriver

  • 9 Programmable Target Torque Setpoints
  • Real time & Peak Torque Measurement
related

line

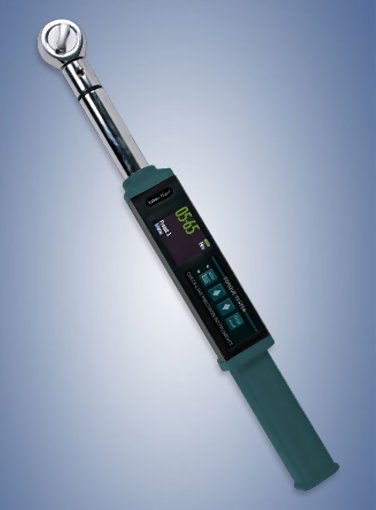

ETW
