DTL-100i Low Range Digital Torque Wrench, Capacity: 106 in-lb / 12 N-m, 1/4 in Drive



Price: $ 299.00

DTL-100i Low Range Digital Torque Wrench
Low Range Digital Torque Wrench
Capacity: 106 in-lb / 12 N-m
1/4 Inch Drive

Capacity: 106 in-lb / 12 N-m
Drive Size: 1/4 Inch

The new Check-Line DTL Digital Torque Wrench is designed for simple and precise measurement of industrial, automotive, aerospace and many other applications. It measures both application or remove torque and displays it in either Real-Time or Peak Mode on a large LCD display in Lb-in, N-m, ft-lb or Kg-cm units (user selectable).

The DTL-100i features a programmabletarget set point that indicates the desired torque value with a red and green LEDs and audible beep.

line
Photo Gallery
line

ABQ ABQ ABQ ABQ

line
Features
line

  • Displays in-lb, N-m, Kg-cm and ft-lb units (User selectable)
  • CW and CCW operation
  • Peak or Real-Time (track) mode (User Selectable)
  • Programmable Target Set-point with audible and visual indicators
  • Includes Calibration Certificate
  • CE Certified

line
Force Ranges
line

ModelCapacityResolution
DTL-100i10.6 - 106.2 Lb-in
1.20 - 12.00 Nm
0.88 - 8.85 Lb-ft
12.2 - 122.4
0.1 Lb-in
0.01 Nm
0.01 Lb-ft
0.1 Kg-cm


lineSpecificationsline

AccuracyCW 3% / CCW 4% (20 - 100% of capacity)
MemoryN/A
Operation ModePeak hold/ Track
Unit Selectionft-lb, in-lb, N-m, Kg-cm
Length8 inches / 20 mm
Head TypeLever type Ratchet
Battery1 AAA
Battery Life12 Continuous Hours
1 Year Standby
Operating Temperature-10C ~ 60C
Storage Temperature-20C ~ 70C
HumidityUp to 90% non-condensing
Warranty1 Year


lineComplete Kitline

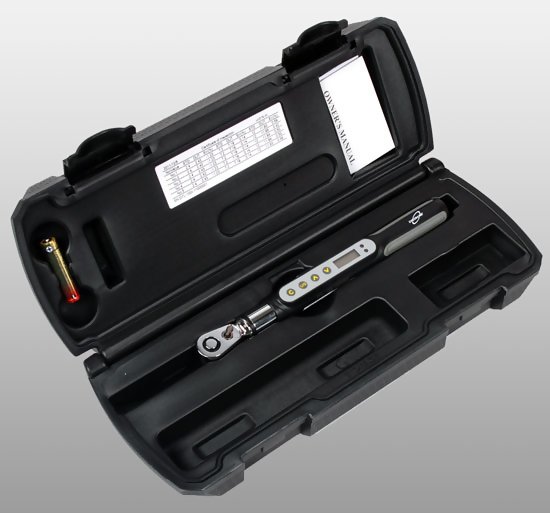

The DTL-100i is supplied as a complete kit including the wrench, 1 AAA battery, instruction manual and calibration cert in a fitted plastic carrying case.

complete kit

lineRelated Productsline

DTW
Electronic Torque Wrench

  • CW and CCW operation
  • Buzzer and LED indicator for the pre-settable target torque
related

line

TSD
Torque Screwdriver

  • 9 Programmable Target Torque Setpoints
  • Real time & Peak Torque Measurement
related

line

ETW
Digital Torque Wrench

  • Bi-Directional Accuracy better than 1%
related

line
Downloads
line

DTL-100i Low Range Digital Torque Wrench - Instruction Manual
DTL-100i Low Range Digital Torque Wrench - Calibration Certificate

lineBuy Nowline


Order Online
Check the items you would like to order then click "Add To Cart". Items typically ship within 1 Week
Product Price
DTL-100i Low Range Digital Torque Wrench, Capacity: 106 in-lb / 12 N-m, 1/4 in Drive $299.00
Accessories Price
NISTCAL - NIST Traceable Calibration Certificate $100.00
