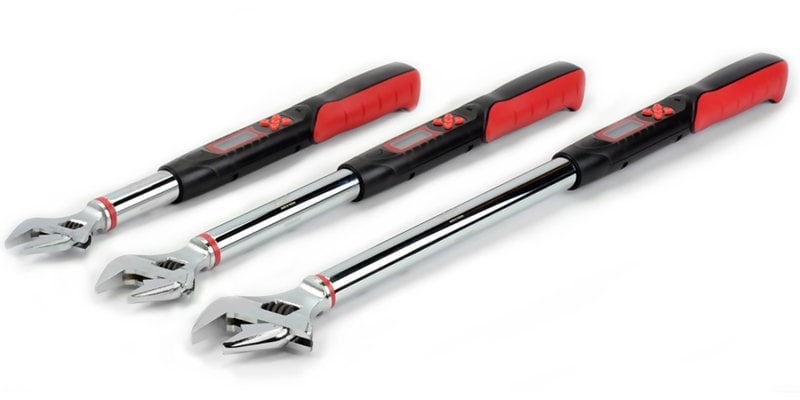

Checkline DAW-60N Digital Adjustable Torque Wrench, 60 Nm / 530 lb-in / 44 lb-ft, 5-27mm drive



Price: $ 335.00

Checkline DAW Digital Adjustable Torque Wrench
3 Models with Capacities up to 250 lb-ft / 340 Nm
9 Programmable Target Torque Set-points

The DAW Series of Digital Adjustable Torque Wrenches are designed for simple and precise measurements in industrial, automotive, aerospace, and many other applications. The DAW displays Real-Time and Peak torque on a large LCD display in ft-lb, in-lb,r N-m or kg-cm (user-selectable).

The DAW features rugged adjustable steel jaws and the ability to program 9 target setpoints. 12 bright LEDs and an audible alarm alert the operator when the applied torque approaches and reaches the desired target.


line
Kit Contents
line

  • DAW Digital Adjustable Torque Wrench
  • Calibration Certificate
  • 2x AA batteries

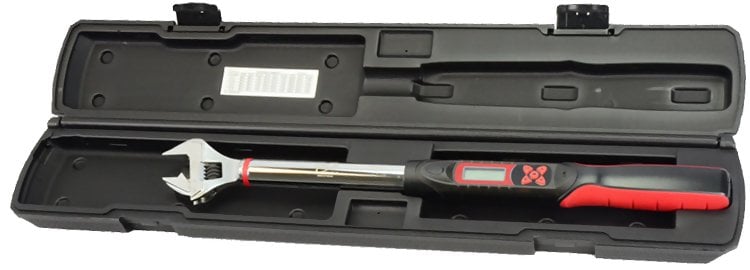

  • Carrying Case
  • Instruction Manual


line
Features
line

  • 9 Programmable Target Torque Set-points
  • Displays Torque in-lbs, ft-lbs, N-m, Kg-cm (User selectable)
  • CW operation (CCW with display facing away from operator)
  • Peak or Real-Time (track) mode (User Selectable)
  • Buzzer and LED indicator for the pre-settable target torque
  • 50 data point memory
  • Auto shutdown after 5 minutes of non use
  • Includes Calibration Certificate
  • CE Certified


line
Specifications
line

AccuracyCW 3% of indicated From 20 - 100% of capacity
Memory50 Readings for recall on display, no output, 9 Presets
Unit Selectionft-lb, in-lb, N-m, kg-cm
Battery2x AA
Battery Life110 Continuous Hours | 1 Year Standby
Operating Temperature-10C ~ 60C
Storage Temperature-20C ~ 70C
HumidityUp to 90% non-condensing
Warranty1 Year


line
Ranges
line

ModelRange / ResolutionDrive SizeLength
DAW-60N3 - 60 Nm / 0.01 Nm
26.5 - 530 lb-in / 0.1 lb-in
2.2 - 44 lb-ft / 0.01 lb-ft
5-27 mm
0.2 - 1.06 in
428 mm
16.85 in
DAW-135N6.8 - 135 Nm / 0.1 Nm
60 - 1200 lb-in / 1 lb-in
5 - 100 lb-ft / 0.1 lb-ft
5-27 mm
0.2 - 1.06 in
428 mm
16.85 in
DAW-340N17 - 340 Nm / 0.1 Nm
12.5 - 250 lb-ft / 0.1 lb-ft
10-41 mm
0.39 - 1.61 in
650 mm
25.6 in

Other ranges available, inquire
