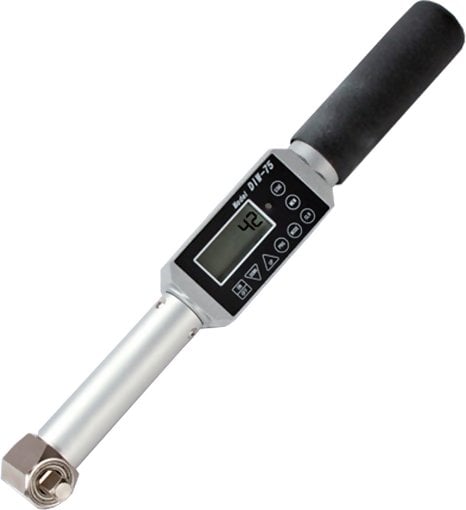

Cedar DIW-15 Lightweight Digital Torque Tester / Wrench, 1/4" Drive, Capacity 130 lbf-in



Price: $ 1,140.00

Cedar DIW Lightweight Digital Torque Tester / Wrench
1/4", 3/8" or 1/2" Drive
Capacity: up to 87 ft-lbs
Wrench head swivels 300

Cedar DIW is a lightweight digital torque wrench that tightens or loosens bolts up to 1040 lbf-in. The wrench head swivels 300 and can be used in tight places. Youll get consistent readings no matter where or how the wrench is gripped because the torque sensor is centered on the drive and not up in the handle. Torque controlled wrenches can also be evaluated by comparative tests on a given fastener. Both breakaway and loosen tests can be performed. The Cedar DIW is rugged enough to be used in production. Wrench head swivels 300

This tester has an accuracy of 0.5%, 1 LSD. It offers a programmable setpoint for uniform tightening or Go/No Go testing and also provides peak data for SPC (statistical process control) via the RS232 port.

Consistent readings no matter where the wrench is gripped because the torque sensor is centered on the drive.


line

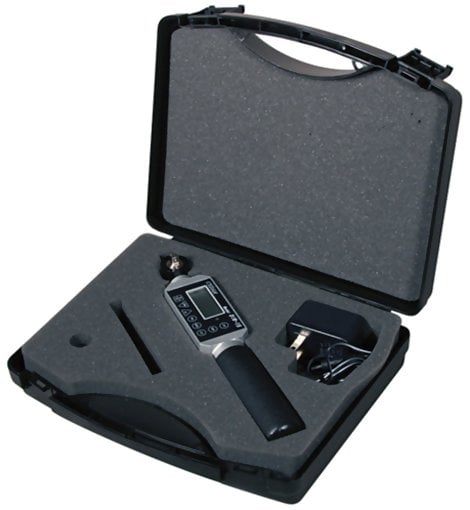

Kit Contents
line

  • Imada Cedar DIW Lightweight Digital Torque Tester
  • Carrying case
  • AC adapter/charger


line
Features
line

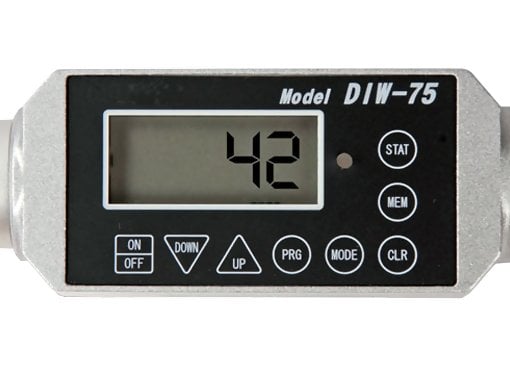

  • Displays in-lb, N-m, Kg-cm and ft-lb units (User selectable)
  • CW and CCW operation
  • Peak or Real-Time (track) mode (User Selectable)
  • Programmable Target Set-point with audible and visual indicators
  • Includes Calibration Certificate
  • CE Certified


lineSpecificationsline

Accuracy0.5%, 1 LSD
Sampling Frequency100 Hz (100 samples/sec)
Display Update Rate5 Hz (5 times/sec)

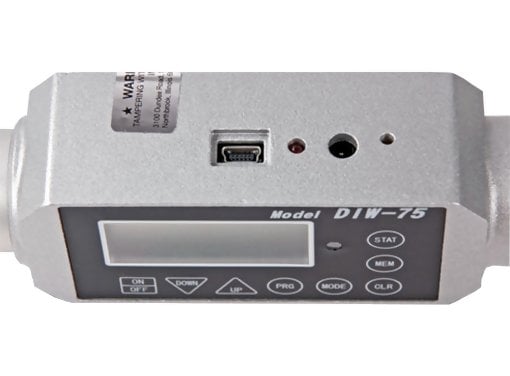

USB Output180 data/sec
Memory400 data memory for recall or for SPC download
Warranty2 years


line

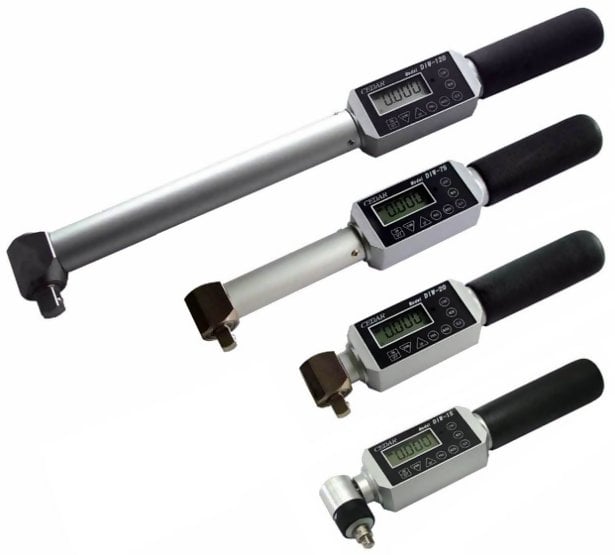

Force Ranges
line

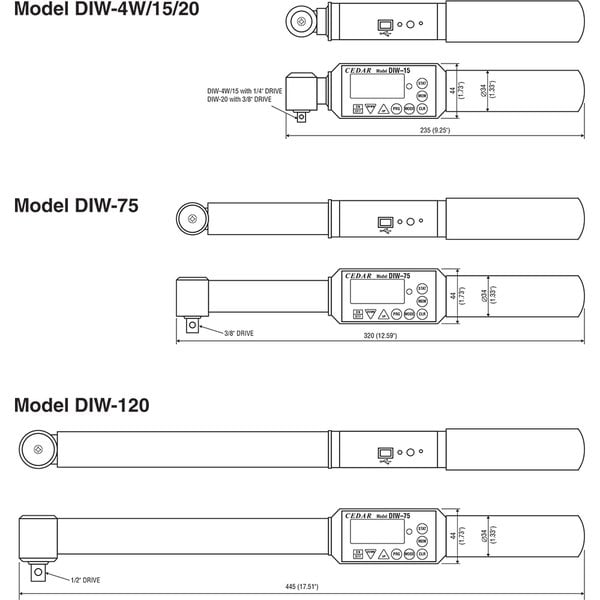

ModelCapacityDrive Size
DIW-4W0.20 35.00 lbf-in
0.2 40.00 kgf-cm
0.020 4.00 N-m
1/4"
DIW-153.0 130.0 lbf-in
3.0 150.0 kgf-cm
0.30 15.00 N-m
1/4"
DIW-203.0 180.0 lbf-in
3.0 200.0 kgf-cm
0.30 20.00 N-m
3/8"
DIW-753.0-660.0 lbf-in
0.30-55.00 lbf-ft
3.0-750.0 kgf-cm
0.30-75.00 N-m
3/8"
DIW-12030-1040 lbf-in
3.0-87.0 lbf-ft
30-1200 kgf-cm
3.0-120.0 N-m
1/2"


line
Related Products
line

SW-1

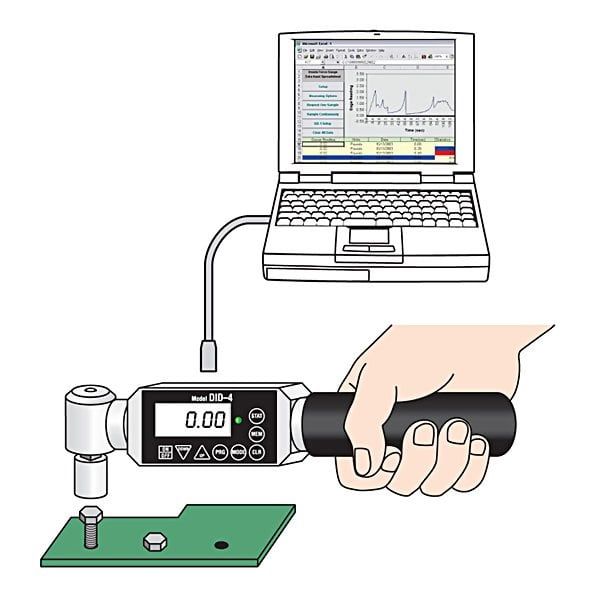

Data Acquisition Software for Force Gauges & Torque Gauges

  • Full SPC and graphing capabilities
  • Automates your data collection
  • Provides a running log of all measurements along with a chart of the data as well as statistical information
related

Order Online
Check the items you would like to order then click "Add To Cart". Items typically ship within 1 Week
Product Price
Cedar DIW-15 Lightweight Digital Torque Tester / Wrench, 1/4" Drive, Capacity 130 lbf-in $1,140.00
Accessories Price
ISO/IEC 17025 Upgrade from 3 point NIST traceable cert to ISO-17025 Certificate $160.00
SW-1SV-USB Data Acquisition Software for Torque Testers with RS-232 or USB ports $199.00
SS-209 USB Output Cable for DIW Torque Driver $25.00
6A-061WP12 Power Adapter for DIW (formerly 3A-066WP12-120) $50.00
