Mountz 068000-A TBIH Wrench Handle, Black, Range: 25 - 50 ozf.in / 0.17 - 0.35 Nm
$207.00
Loading...
Loading product info...
Similar Products to Consider
Product Description
Mountz TBIH Break-Over Torque Wrench with Interchangeable Head
Interchangeable heads
Torque Ranges: 25 ozf.in - 50 lbf.in
Interchangeable heads
Torque Ranges: 25 ozf.in - 50 lbf.in
The Mountz TBIH Break-Over Torque Wrench with Interchangeable Head is a small torque wrench ideal for applications with limited space. The flexible preset wrench can adapt to different fastening applications as it is compatible with different head options like open end, box end, flare end, hex key end or a ratchet head.The slim wrench features a tamper-proof internal adjustment. When the TBIH torque wrench achieves torque, the head breaks-over signaling to the operator to stop applying torque to the fastener or bolt. Break-over torque wrenches improve control of the fastening process by reducing the risk of both over and under tightening.
Features
- The break-over mechanism minimizes shock to assemblies.
- Tamper-proof internal adjustment. No external adjustment scale - must be preset using a torque analyzer.
- "Breaks-over" when preset torque is reached eliminating overtorquing.
- Six different colored aluminum handles allow for color-coding of specific torque values in production areas.
- Small and lightweight. Ideal for use in restricted spaces.
- Interchangeable heads are manufactured with a common centerline so the torque setting remains the same when head sizes are changed.
Ranges
| Torque Range | Black Handle | Blue Handle | Red Handle | Green Handle | Gold Handle | Silver Handle |
| 25 - 50 ozf.in / 0.17 - 0.35 Nm | 068000-A | 068001-A | 068002-A | 068003-A | 068004-A | 067999-A |
| 3 - 12 lbf.in / 0.34 - 1.3 Nm | 068000-B | 068001-B | 068002-B | 068003-B | 068004-B | 067999-B |
| 12 - 21 lbf.in / 1.3 - 2.37 Nm | 068000-C | 068001-C | 068002-C | 068003-C | 068004-C | 067999-C |
| 20 - 50 lbf.in / 2.26 - 5.65 Nm | 068000-D | 068001-D | 068002-D | 068003-D | 068004-D | 067999-D |
Interchangeable Heads

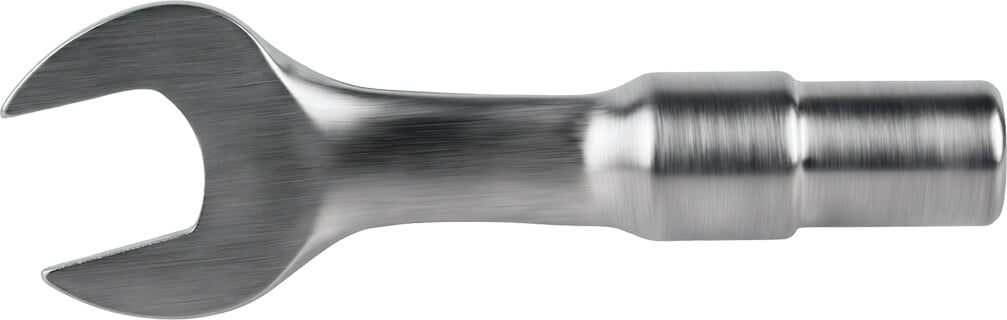

TBIH-OEH
Open-End Heads for TBIH Wrench
- English and Metric Sizes
American
| Model | Size | Model | Size |
| 068115 | 5/64" | 068107 | 11/32" |
| 068100 | 1/8" | 068108 | 3/8" |
| 068180 | 9/64" | 068098 | 13/32" |
| 068101 | 5/32" | 068109 | 7/16" |
| 068102 | 3/16" | 068110 | 1/2" |
| 068314 | 13/64" | 068111 | 9/16" |
| 068103 | 7/32" | 068112 | 5/8" |
| 068215 | 15/64" | 068114 | 11/16" |
| 068104 | 1/4" | 068113 | 3/4" |
| 068105 | 9/32" | 068099 | 13/16" |
| 068106 | 5/16" | 068042 | 7/8" |
Metric
| Model | Size | Model | Size |
| 068159 | 3 mm | 068146 | 12 mm |
| 068202 | 4 mm | 068147 | 13 mm |
| 068139 | 5 mm | 068148 | 14 mm |
| 068046 | 5.5 mm | 068136 | 15 mm |
| 068140 | 6 mm | 061430 | 16 mm |
| 068160 | 6.5 mm | 068237 | 17 mm |
| 068141 | 7 mm | 068222 | 18 mm |
| 068142 | 8 mm | 068208 | 19 mm |
| 068149 | 8.5 mm | 068199 | 20 mm |
| 068143 | 9 mm | 068138 | 21 mm |
| 068144 | 10 mm | 068209 | 22 mm |
| 068145 | 11 mm |

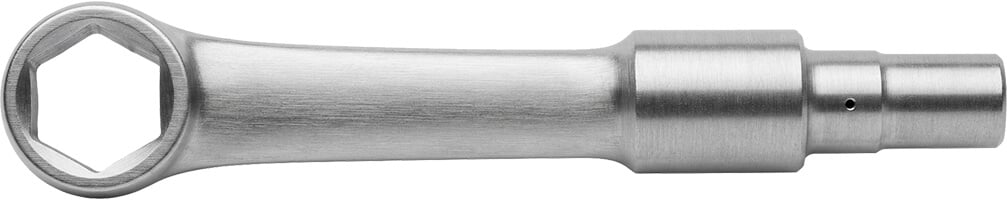

TBIH-BH
Box End Heads for TBIH Wrench
- English and Metric Sizes
American
| Model | Size | Pt Size | Model | Size | Pt Size |
| 068120 | 1/8" | 6 pt | 068128 | 3/8" | 12 pt |
| 068121 | 5/32" | 6 pt | 068129 | 7/16" | 12 pt |
| 068122 | 3/16" | 6 pt | 068130 | 1/2" | 12 pt |
| 068123 | 7/32" | 12pt | 068131 | 9/16" | 12 pt |
| 068124 | 1/4" | 6 pt | 068132 | 5/8" | 12 pt |
| 068125 | 9/32" | 6 pt | 068133 | 11/16" | 12 pt |
| 068126 | 5/16" | 12 pt | 068134 | 3/4" | 12 pt |
| 068127 | 11/32" | 12pt |
Metric
| Model | Size | Pt Size | Model | Size | Pt Size |
| 068313 | 5 mm | 6 pt | 068154 | 10 mm | 12 pt |
| 068150 | 6 mm | 12 pt | 068155 | 11 mm | 12 pt |
| 068151 | 7 mm | 12pt | 068156 | 12 mm | 12 pt |
| 068152 | 8 mm | 12 pt | 068157 | 13 mm | 12pt |
| 068153 | 9 mm | 12 pt | 068137 | 17 mm | 12 pt |

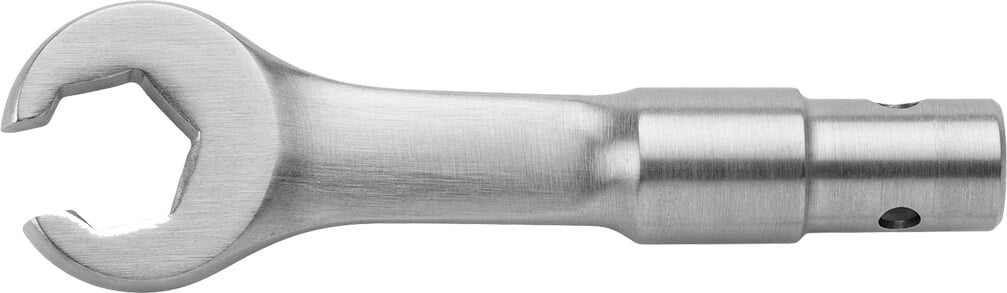

TBIH Flare
Flare End Heads For TBIH
- English and Metric Sizes
American
| Model | Size | Model | Size |
| 068188 | 1/4" | 068190 | 9/16" |
| 068189 | 5/16" | 068320 | 11/16" |
| 068187 | 3/8" | 068235 | 3/4" |
| 061553 | 7/16" | 068321 | 13/16" |
| 068198 | 1/2" |
Metric
| Model | Size | Model | Size |
| 069232 | 13 mm | 068237 | 17 mm |
| 068194 | 15 mm | 068208 | 19 mm |

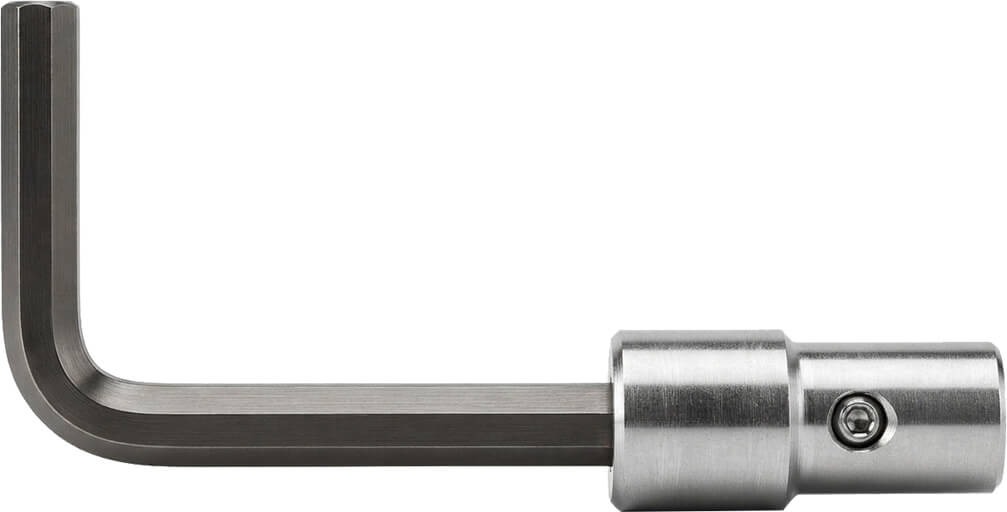

TBIH-HK
Hex Key Heads for TBIH Wrench
- English and Metric Sizes
American
| Model | Size | Model | Size |
| 068175 | 0.05" | 068167 | 5/32" |
| 068174 | 1/16" | 068168 | 3/16" |
| 068162 | 5/64" | 068169 | 7/32" |
| 068163 | 3/32" | 068170 | 1/4" |
| 068164 | 7/64" | 068171 | 3/8" |
| 068165 | 1/8" | 068172 | 7/16" |
| 068166 | 9/64" | 068173 | 3/4" |
Metric
| Model | Size | Model | Size |
| 068236 | 1.5 mm | 068184 | 3.5 mm |
| 068181 | 2 mm | 068185 | 4 mm |
| 068182 | 2.5 mm | 068186 | 5 mm |
| 068183 | 3 mm |
