CLTW-428-02 Manual Torque Multiplier, 4500 Nm / 3300 lb-ft, 26:1, 1/2" Input, 1" Output
Price: $ 2,195.00
Multiplication accuracy 5%
Precision tightening and loosening of all heavy duty fastening connections
The Mountz TW-Series Manual Torque Multiplier is ideal for applications where air and electricity aren't easily accessible. The gearing design allows for a high torque output with minimal input. Commonly used in petrochemical, power generation, transportation, shipping, and maintenance industries.

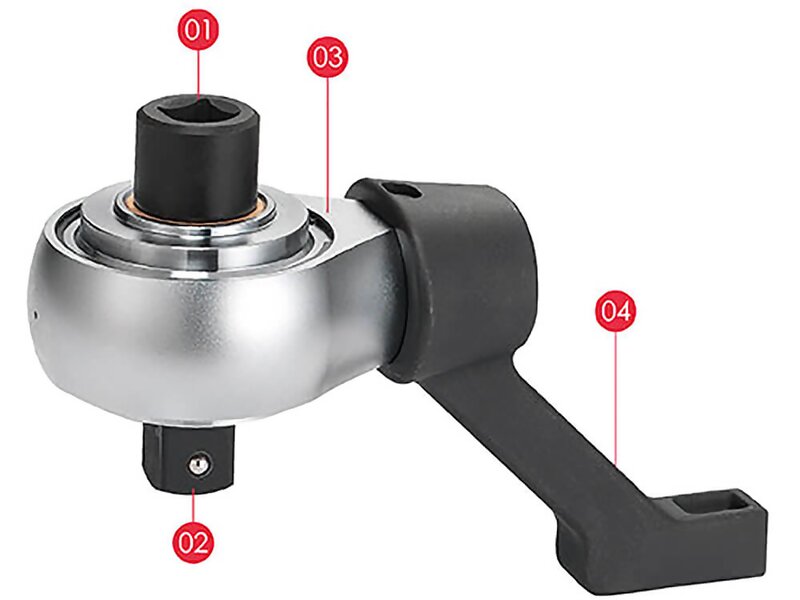

 - Input end: Chromium-molybdenum alloy steel brings better strength and life cycle.
- Output end: Chromium-molybdenum alloy steel brings better strength and life cycle.
- Main body: Electroplating Finished good for anti-corrosion and anti-abrasion.
- (a)Planetary gear carrier device brings high transmission efficiency and load capacity.
- (b)All gears rotate on needle roller bearings throughout the operating process.
- Reaction arm: Each tool is supplied with 2 reaction bars subject to the working environment.

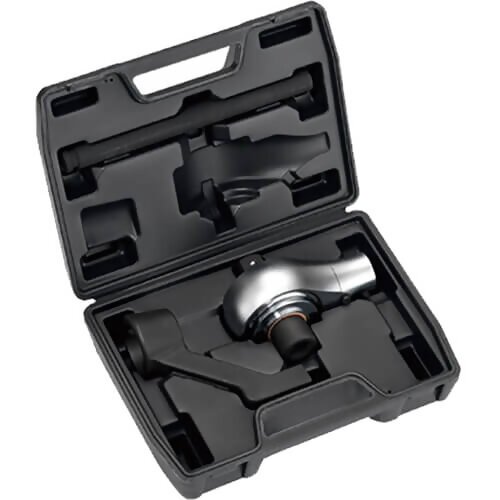

Kit Contents
- Mountz TW-Series Manual Torque Multiplier
- Reaction Foot
- Reaction Bar
|  |
Features
- Supplied with 2 reaction bars
- Multiplication accuracy 5%.
- Precision tightening and loosening of all heavy duty fastening connections
- For operation in combination with a torque wrench
- Torque Multiplication Ratio - low energy input with high torque output
- Compact design allows for operation in space-restricted applications
- CLTW-428 Models feature an anti-backlash mechanism for safety
Ranges
| Model | Output Nm | Output lb-ft | Input Drive | Output Drive | Ratio | | CLTW-416 | 1500 | 1100 | 1/2" | 3/4" | 5:1 | | CLTW-418 | 1500 | 1100 | 1/2" | 1" | 5:1 | | CLTW-618 | 2700 | 2000 | 3/4" | 1" | 5:1 | | CLTW-428-01 | 3000 | 2200 | 1/2" | 1" | 15.5:1 | | CLTW-428-02 | 4500 | 3300 | 1/2" | 1" | 26:1 |
|
|
|
