High accuracy 1.5% F.S. both CW and CCW directions
9 ranges up to 150 lbf-ft
Checkline GEK Adjustable and Ratchet Digital Torque Wrenches have a forged steel ratchet head and feature a unique power sensor in the ergonomic handle which accurately detects and analyzes load applied to the grip to enable more precise torque measurement regardless of hand position, unlike other loading point sensitive wrenches.
Checkline GEK Adjustable and Ratchet Digital Torque Wrenches expand torque applications to places where a socket wrench cannot work. They feature forged steel jaws and a unique power sensor in the handle which accurately detects and analyzes load applied to the grip, regardless of hand position and specially designed jaws that maintain a constant working length whether open or closed, to enable more precise torque measurement.
These torque wrenches measure in peak mode, peak with auto zero reset, and real time. Five programmable torque presets stored in memory enable the user to check frequently used values. The presets alert the user with an intermittent signal at 90% and a continuous signal at 100% of the preset torque value using LED and audible indicators that enable users to tighten to within 10% of a preset torque value. Pass/Fail mode counts the number of fasteners tightened within programmed high and low torque limits. Selectable units of lbf-in, lbf-ft, kgf-m, and N-m. Uses a lithium coin battery, CR2354.
Features
- High accuracy 1.5% F.S. both CW and CCW directions
- Pass/Fail mode counts fasteners tightened within programmed High/Low limits, using LED and audible alerts
- Five programmable torque presets ideal for frequent operations
- Peak, peak with auto zero reset and Real Time modes
- Selectable units, lbf-in, lbf-ft, kgf-cm, N-m
- Calibration certificate traceable to NIST and carrying case included
- ISO-6789 Compliant
Specifications
| Accuracy | 1.5% F.S. |
| Measuring direction | CW and CCW |
| Measuring unit | Selectable lbf-in, lbf-ft, kgf-m, N-m |
| Data Memory | 5 (storable Target torque values), 1 (Pass/Fail Mode) |
| Auto Shut OFF | Power automatically turns off after 2 minutes of non-use |
| Battery | Lithium coin battery CR2354 |
| Battery Life | Approx. 2 months (100 usages per day) |
Torque Ranges
Digital Ratchet Wrench Ranges
| Model | lbf - in | lbf - ft | kgf - m | N - m | Drive |
| GEK030-R2E | 13.4 - 265.4 | 1.12 - 22.12 | 0.160 - 3.060 | 1.50 - 30.00 | 1/4" |
| GEK030-C3E | 13.4 - 265.4 | 1.12 - 22.12 | 0.160 - 3.060 | 1.50 - 30.00 | 3/8" |
| GEK060-R3E | 13.5 - 531.0 | 1.15 - 44.25 | 0.160 - 6.120 | 1.50 - 60.00 | 3/8" |
| GEK085-R3E | 19.0 - 752.0 | 1.60 - 62.70 | 0.21 - 8.66 | 2.0 - 85.0 | 3/8" |
| GEK135-R4E | 28 - 1195 | 2.3 - 99.5 | 0.32 - 13.76 | 3.1 - 135.0 | 1/2" |
| GEK200-R4E | 46 - 1770 | 3.8 - 147.4 | 0.55 - 20.40 | 5.2 - 200.0 | 1/2" |
Digital Adjustable Wrench Ranges
| Model | lbf - in | lbf - ft | kgf - m | N - m |
| GEK085-W36E | 19.0 - 752.0 | 1.60 - 62.70 | 0.21 - 8.66 | 2.0 - 85.0 |
| GEK135-W36E | 28 - 1195 | 2.3 - 99.5 | 0.32 - 13.76 | 3.1 - 135.0 |
| GEK200-W36E | 46 - 1770 | 3.8 - 147.4 | 0.55 - 20.40 | 5.2 - 200.0 |
More Info

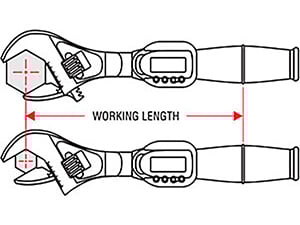

Specially Designed Jaws Maintain Consistent Working Length Consistent working length, whether the jaws are open or closed, assures greater accuracy in measurement (measured from the bolt's rotational axis to the point where load is applied). |  |

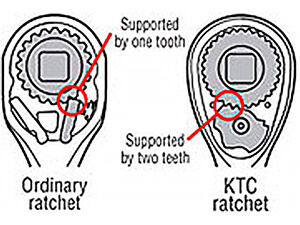

Forged Steel Ratchet Head The 36 tooth gear and double claw ratchet allows a 10 angle and solid movement between clicks |  |
Wrench Union

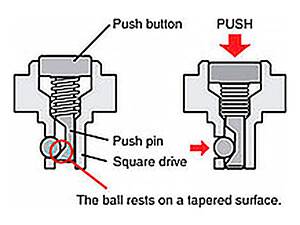

Ordinary Socket Wrench Union The ball in the square drive rests on a tapered surface of the pushpin and can be pushed in without pressing the pushpin, allowing the socket to detach unexpectedly |  |

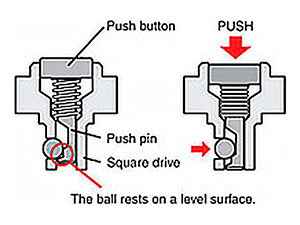

Digital Ratchet Torque Wrench Union The ball in the square drive rests on the small platform on the pushpin and cannot be pushed in without pressing the pushpin, resulting in no accidental detachments |  |
Optional Quick Spinner and Spinner/Converters

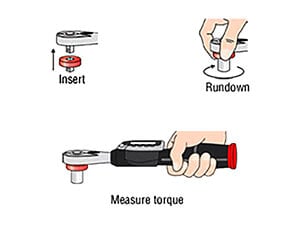

Quick Spinners and Spinner/Converters allow users to quickly rundown the bolt or nut using their fingers before applying torque. - BE2-Q 1/4" to 1/4" Quick Spinner
- BE3-Q 3/8" to 3/8" Quick Spinner
- BE4-Q 1/2" to 1/2" Quick Spinner
|  |

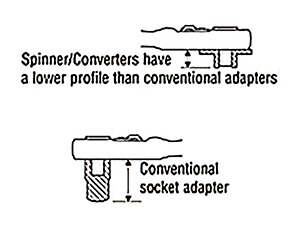

Spinner/Converters have a lower profile than convention adapters. - BAE23 converts 1/4" to 3/8" drive
- BAE34 converts 3/8" to 1/2" drive
|  |
Quick Spinner BE2-Q 1/4" to 1/4"
BE3-Q 3/8" to 3/8"
BE4-Q 1/2" to 1/2" |  | Spinner / Converters BAE23 1/4" to 3/8" |  | Spinner / Converters BAE34 3/8" to 1/2" |  |
Downloads
